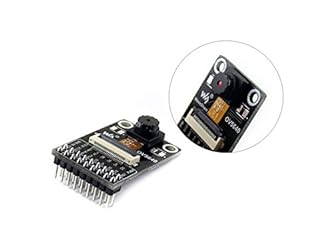

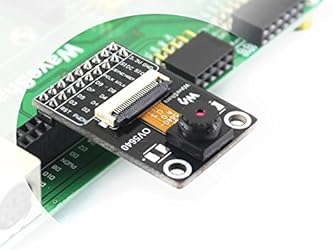

Waveshare OV5640 Camera Board (A) 5 Megapixel 2592x1944 Image Sensor Module High Sensitivity Low Crosstalk Low Noise
En stock
0.15 kg
No
Nuevo
Amazon
USA
- Features Pixels: 5 megapixel Resolution: 2592x1944 Sensor: OV5640 1.4um x 1.4um pixel with OmniBSI technology, high sensitivity, low crosstalk, low noise Automatic image control functions: AEC, AWB, ABF, ABLC, etc. Image quality controls: color saturation, hue, gamma, sharpness, lens correction, etc. Supports image scaling, panning, windowing, etc. Lens: CCD size: 1/4inch Aperture (F): 3.0 Focal Length: 3.8mm Diagonal: 60 degree Output Formats: YUV(422/420)/YCbCr422 RGB565/555/444 CCIR656 RAW RGB Compressed Data Operating Voltage: 3.3V Control Interface: SCCB (I2C compatible) Data Interface: DVP 8-bit Dimension: 35.70mm × 23.90mm PACKAGE CONTENT OV5640 Camera Board (A) x1
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
Conoce más detalles
Camera Module Based on OV5640 Image Sensor, 5 Megapixel (2592x1944) Automatic image control functions: AEC, AWB, ABF, ABLC, etc.Supports image scaling, panning, windowing, etc. Image quality controls: color saturation, hue, gamma, sharpness, lens correction, etc. CCD size: 1/4inch.Aperture (F): 3.0.Focal Length: 3.8mm.Diagonal: 60 degree Output Formats:YUV(422/420)/YCbCr422,RGB565/555/444,CCIR656,RAW RGB,Compressed Data
