SKU/Artículo: AMZ-B07C1XCH68
NOYITO

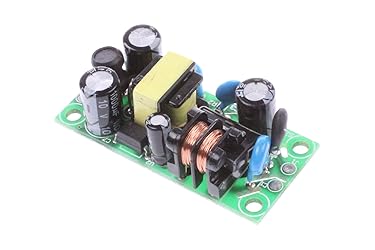

NOYITO AC to DC Precision DC 5V 1A 5W Power Supply Module AC 120V 85V-265V 50 60Hz to 5V Isolated Industrial Grade Built-in Power Module (5V 1A)
Size:
5V 1A
Color:
Green
Detalles del producto
Disponibilidad:
En stock
En stock
Peso con empaque:
0.15 kg
0.15 kg
Devolución:
Sí
Sí
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Viaja desde
USA
USA
Sobre este producto
- Description: The power supply has a temperature protection, over-current protection and short circuit protection, AC 120V 85 ~ 265V wide voltage input, DC5V output, compact, 431 precision regulator. with EMI filter circuit. Parameter: 1.Use environment Working temperature: -20°C- +60°C; Relative humidity: 40-90 %RH; 2. Input characteristics (test conditions: full load conditions) Input voltage range: AC 85-265V; Input current: 0.054 (AC110V) A, 0.027 (AC220V) A; Input surge current: 20A; 3. Output characteristics Output voltage: +5V±0.2V; Minimum current: 0A; Maximum current: 1000mA; Peak current: 1100mA; Ripple: 60mV; Output power: 5W (5.5W Max); Output efficiency: 85%; Output rise time: 10ms; 4. Protection function Restore after trigger protection: restart Output over power protection; Short circuit protection; Temperature protection; Overcurrent protection; 5.Reliability requirements Environment 25 ° C under 80% load MTBF more than 100,000 hours Package Included: 1pcs AC-DC Power Module Supply
AR$26.815
60% OFF
AR$10.723
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
AR$26.815
60% OFF
AR$10.723
10% OFF con cupon ANIVERSARIO10
Pagá fácil y rápido con Mercado Pago o MODO
Llega en 8 a 12 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Conoce más detalles
The power supply has a temperature protection, over-current protection and short circuit protection, AC85 ~ 265V wide voltage input, DC5V output, compact, 431 precision regulator. with EMI filter circuit. Input Voltage: AC 120V 85-265V 50/60HZ (full load) Output voltage: DC 5V±0.2V. Output current: 1A ; Power: 5W; Reliability: Environment 25 ° C under 80% load MTBF more than 100,000 hours. Size: 50*25*17mm. Installation method: A. Pins can be directly soldered to the PCB at the input and output side. B. Mounting holes are fixed Size: 50*25*17mm（LWH）.Working temperature: -20°C- +60°C;Relative humidity: 40-90 %RH;
