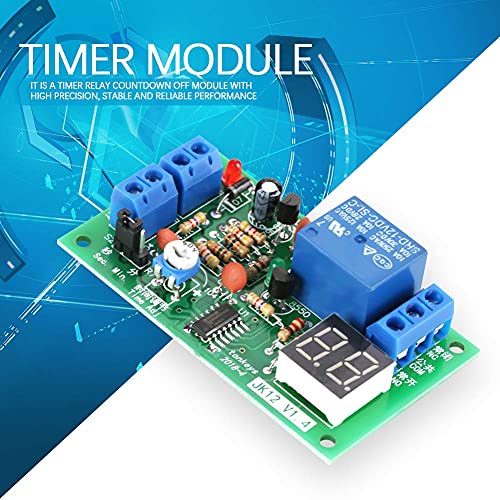

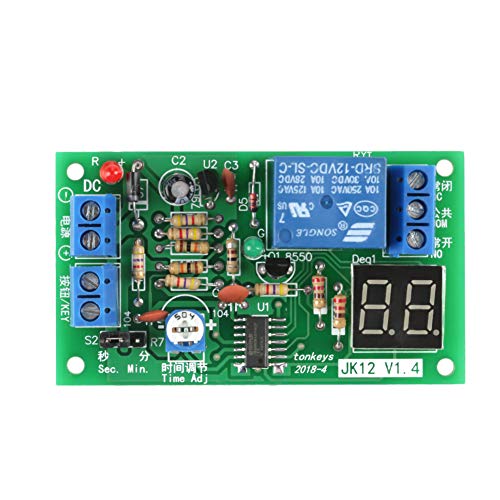

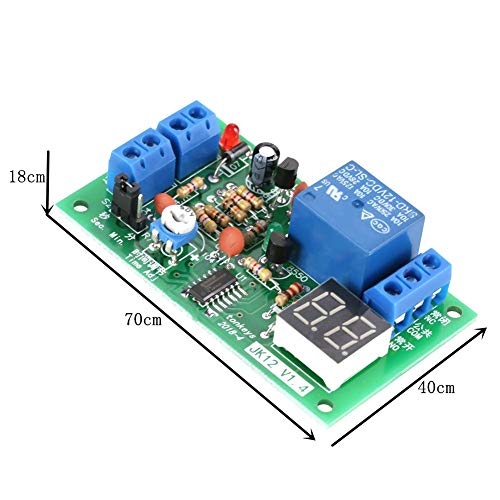

DC12V Adjustable Timer Relay, Relay Timing Module, Adjustable Time Switch Module, Digital LCD Display Countdown Timer

0 5 4 86

86 calificaciones

Detalles del producto

Disponibilidad:
En stock

Peso con empaque:
0.15 kg

Devolución:
Sí

Condición
Nuevo

Producto de:
Amazon

Viaja desde
USA

Sobre este producto

SCOPE OF APPLICATION: Widely used in timer operating equipment, household appliances, lighting delay modification, factory equipment, delay control, etc.
ADJUSTABLE TIME: Wide time range, delay time can be adjusted from 1 second to 99 seconds or 1 minute to 99 minutes; use the jumper to select seconds/minute.
HOW TO USE: the connection and insert it after delay; if it is triggered continuously at a timing, the connection will be switched immediately; under normal circumstances, the module will start working when it is triggered. If you need the module to work immediately after power-on, please connect the two . Terminals.
LED: Designed with an LED display that can display the delay time.
HIGH PRECISION: The timer relay countdown module has high precision, stable and performance. The delay time is 1~99 seconds / 1~99Min. Load capacity 10A 250V AC; 10A 30V DC.
