Mini LED car SRS airbag abs Light Timer Switch 1 to 10 sec kit delay Off 12V Box
En stock
0.30 kg
No
Nuevo
Amazon
USA

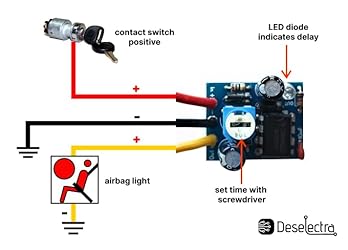

- Repair the constantly lit airbag light with our special kit! This kit is designed for LED airbag lights up to 2.5W, featuring a precision timer from 1 to 10 seconds.Dimensions: 33mm length, 28mm width, 21mm height, with LED indicator for operation!Power: The red wire is positive (+) and the black wire is negative (-), with protection against reverse voltage.Installation instructions: Connect the red wire to the 12V+ contact switch and the black wire to ground.Output: 0.15A - The yellow wire connects to the positive of the airbag light, the negative to ground.Power supply: 12V DC.Time adjustment: Rotate the PR - 100K trimmer clockwise to increase the delay time.Principle of operation: The timer activates the airbag light for the set time!Package contents: 1 LED timer with box and 1 instruction with wiring diagram. Buy now!
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
Conoce más detalles
🔍Maximum Load Control: Handles 12V/0.2A, ideal for LED lights up to 2.5W 💡LED Indication: Clearly see when the timer is operational 🕒 Timer Accuracy: Adjust from 1 to 10 seconds 🔋 Power Protection: Red wire (+) and black wire (-) with reverse supply voltage protection 🛠️ Easy Installation: Connect the red wire to the contact switch 12V+. Ground the black wire. Connect the yellow wire to the positive of your airbag light, and the negative to ground. ⚙️Dimensions: Length: 1.3 inches , Width: 28 inches, Height: 0.6 inches
