SKU/Artículo: AMZ-B0F2YQBY6L
UeeKKoo

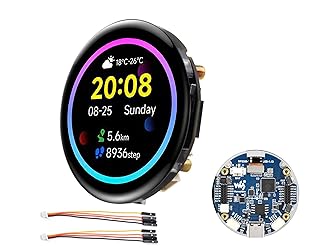

RP2350 1.43inch AMOLED Touch Display Development Board, 466x466, SPI Interface, RP2350 Chip with AMOLED Screen, Onboard Rich Interfaces, for Development of RP2350 HMI Applications (No Case)
Detalles del producto
Disponibilidad:
En stock
En stock
Peso con empaque:
0.15 kg
0.15 kg
Devolución:
No
No
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Viaja desde
USA
USA
Sobre este producto
- RP2350 1.43inch AMOLED Display Development Board, 466×466, SPI Interface Round Display, Onboard Accelerometer And Gyroscope Sensor, R T C Chip Features Adopts RP2350 chip, unique dual-core and dual-architecture design: dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz 520KB of SRAM, and 16MB onboard Flash memory Onboard 1.43inch AMOLED display, SPI interface, 466 × 466 resolution, 16.7M color Supports capacitive touch function controlled via I2C interface, with interrupt support Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc. Onboard PCF85063 RTC chip with reserved SH1.0 ba-tte-ry header (supports charging) for R T C function requirement Onboard RST and BOOT side buttons Onboard 3.7V MX1.25 Lithium ba-tte-ry recharge/discharge header Onboard TF card slot for external storage of pictures or files Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use Onboard UART and I2C SH1.0 4PIN connector, reserved 2 × 14PIN 1.27mm pitch GPIO headers Package Content RP2350-Touch-AMOLED-1.43 x1 SH1.0 4PIN cable ~100mm x2
AR$136.967
60% OFF
AR$54.787
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
AR$136.967
60% OFF
AR$54.787
10% OFF con cupon ANIVERSARIO10
Pagá fácil y rápido con Mercado Pago o MODO
Llega en 18 a 28 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Conoce más detalles
Powerful RP2350 Chip: Dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz. 520KB of SRAM, and 16MB onboard Flash memory 1.43inch Capacitive Touch Display: Onboard 1.43inch AMOLED display, SPI interface, 466 × 466 resolution, 16.7M color, 178° wide viewing angle. Supports capacitive touch function controlled via I2C interface, with interrupt support AMOLED Features: Compared to traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid video image Rich Peripheral Interfaces & Expandability: QMI8658 6-axis IMU ( for detecting motion gestures, counting steps, etc.); PCF85063 RTC chip with reserved SH1.0 ba-tte-ry header (supports charging) for R T C function requirement; RST and BOOT side buttons; 3.7V MX1.25 Lithium ba-tte-ry header USB Type-C & UART and I2C: Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use. Onboard UART and I2C SH1.0 4PIN connector, reserved 2 × 14PIN 1.27mm pitch GPIO headers. It is suitable for the quick development of the RP2350 HMI applications Comes with relevant resources and tutorials to help you get started quickly: bit.ly/3DNMjBo
