SKU/Artículo: AMZ-B0F7LLH3G4
UeeKKoo
ESP32-S3 with 1.64inch AMOLED Touch Display Development Board, 280 x 456, QSPI Interface, Onboard Accelerometer and Gyroscope Sensor,Type-C, UART, I2C, etc. Ideal for HMI and ESP32-S3 Applications
Detalles del producto
Disponibilidad:
En stock
En stock
Peso con empaque:
0.15 kg
0.15 kg
Devolución:
Sí
Sí
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Viaja desde
USA
USA
Sobre este producto
- Features Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with an onboard antenna. The device allows switching to use an external antenna by resoldering an onboard resistor. Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM. with 1.64inch AMOLED Touch display, QSPI interface, 280 x 456 resolution, 16.7M color, 178° wide viewing angle, excellent display performance, capable of smoothly running GUI programs such as LVGL. Supports capacitive touch function, controlled via I2C interface. The AMOLED is recognized as the next-generation display technology, offers superior light-control precision compared to traditional LCD screens. It delivers more vibrant colors, finer details, and more lifelike videos and images. IMU Sensor and other Peripherals: Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for motion gesture detection, step counting, and more. Rich Peripherals Capabilities and Interfaces, it is ideal for the quick development of the HMI and other ESP32-S3 applications. Onboard RST button, along with programmable BOOT button for customizable functionality and flexible development. Onboard 3.7V MX1.25 Lithium battry recharge/discharge header. Onboard TF card slot, enabling external storage for pictures or files. Onboard USB Type-C port for power supply, program downloading, and debugging, making development more convenient. Adapting I2C, UART, and USB interfaces, for connecting peripherals and debugging. Adopts CNC-machined metal frame for better protection, nice looking and more du-rable. Comes with relevant resources and tutorials to help you get started quickly: bit.ly/3ENMblP Package Content ESP32-S3-Touch-AMOLED-1.64 x1 11Pin black pinheader (2.54mm) x2
AR$130.408
60% OFF
AR$52.160
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
AR$130.408
60% OFF
AR$52.160
10% OFF con cupon ANIVERSARIO10
Pagá fácil y rápido con Mercado Pago o MODO
Llega en 8 a 12 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Conoce más detalles

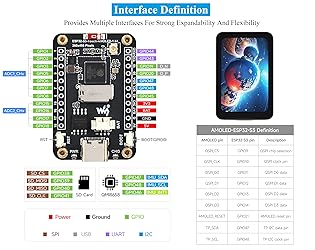

Based on ESP32-S3R8 Chip: Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with an onboard antenna. The device allows switching to use an external antenna by resoldering an onboard resistor. Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM. Onboard AMOLED Screen: with 1.64inch AMOLED Touch display, QSPI interface, 280 x 456 resolution, 16.7M color, 178° wide viewing angle, excellent display performance, capable of smoothly running GUI programs such as LVGL. Supports capacitive touch function, controlled via I2C interface. AMOLED Screen Features: The AMOLED is recognized as the next-generation display technology, offers superior light-control precision compared to traditional LCD screens. It delivers more vibrant colors, finer details, and more lifelike videos and images. IMU Sensor and other Peripherals: Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for motion gesture detection, step counting, and more. Rich Peripherals Capabilities and Interfaces, it is ideal for the quick development of the HMI and other ESP32-S3 applications. Rich Peripherals Capabilities : Onboard RST button, along with programmable BOOT button for customizable functionality and flexible development. Onboard 3.7V MX1.25 Lithium battry recharge/discharge header. Onboard TF card slot, enabling external storage for pictures or files. Interface and Expansion Capabilities: Onboard USB Type-C port for power supply, program downloading, and debugging, making development more convenient. Adapting I2C, UART, and USB interfaces, for connecting peripherals and debugging. Adopts CNC-machined metal frame for better protection, nice looking and more du-rable. Comes with relevant resources and tutorials to help you get started quickly: bit.ly/3ENMblP
