SKU/Artículo: AMZ-B0GK2KLSRB
Ftvogue

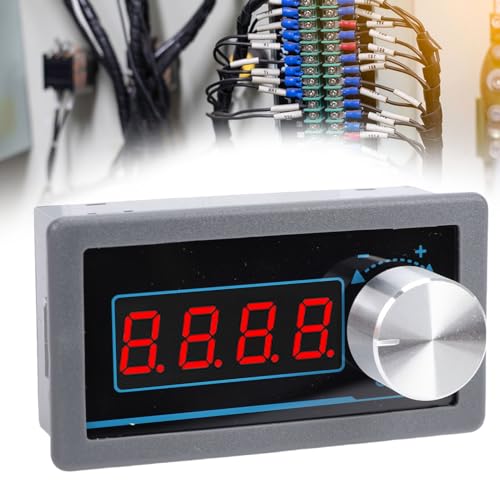

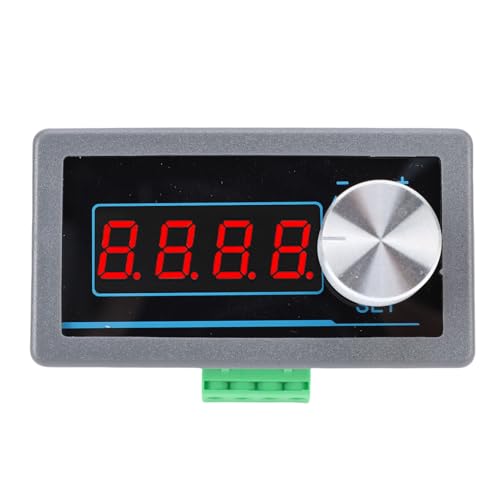

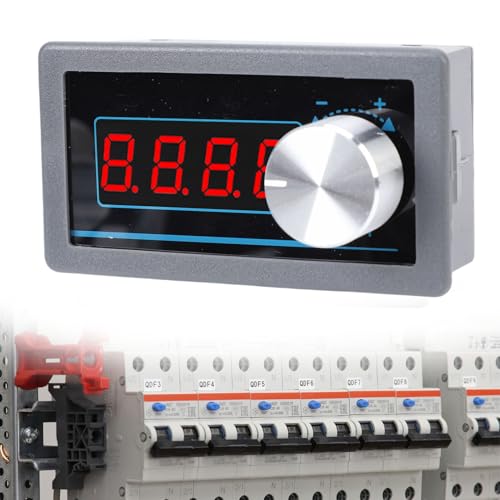

FTVOGUE 0-20.00mA Adjustable Current Signal Generator 4 Digit LED Display Portable Current Loop Simulator with Encoder Knob for PLC Calibration Instrument Testing
Detalles del producto
Disponibilidad:
En stock
En stock
Peso con empaque:
0.15 kg
0.15 kg
Devolución:
No
No
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Viaja desde
USA
USA
Sobre este producto
- Flexible Settings: Experience flexibility with our adjustable current signal generator, allowing for custom settings between 0-20.00mA, complete with a smoothly start and stop function for stable output.
- Accuracy Measurement: Featuring a 4 digit 0.4 inch display and encoder knob for effortless adjustment, this generator ensures accurate full range output compensation and linear error correction for precise readings.
- Quick Switch Functionality: Utilize the convenient coarse and fine adjustment modes, fixed power on mode, and a one button return to minimum value, making this signal generator incredibly easy to operate in any setting.
- Built in Protection: Equipped with integrated short circuit safety and an industrial grade circuit design, this signal generator securely retains settings such as startup values and parameters even after power loss.
- Wide Ranging Applications: Suitable for diverse applications like PLC panel debugging, device testing, variable frequency drives, and dimmers, this compact signal generator is portable and user friendly for all professionals.
AR$57.662
60% OFF
AR$23.065
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
AR$57.662
60% OFF
AR$23.065
10% OFF con cupon ANIVERSARIO10
Pagá fácil y rápido con Mercado Pago o MODO
Llega en 18 a 28 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Conoce más detalles
Specification: Item Type: 0-20.00mA Adjustable Current Signal Generator Material: ABS Power Supply Current: Output Current: Minimum Output Current: Load Capacity: Function Settings Table Display: F001 Function: Minimum Output Data Range Setting Range: 0-20.00MA Display: F002 Function: Maximum Output Data Range Setting Range: Minimum to -24.0MA Display: F003 Function: Coarse Adjustment Data Setting Range: 10-1000 Display: F004 Function: Fine Adjustment Data Setting Range: 1-200 Display: F005 Function: Soft Start Time (0.1/Second Unit) Setting Range: 1-100 Display: F006 Function: Soft Stop Time (0.1/Second Unit) Setting Range: 1-100 Display: F007 Function: Full Range Output Compensation Setting Range: -99-99 Display: F008 Function: Button Settings, 5 Modes Available Display: F009 Function: Display Magnification, Adjust Flashing Position Setting Range: 0.1-999.9 Long press the encoder to exit settings and save data F008 button settings 0: Fine tuning; Power on and start up; Button stores data 1: Short press switch (default) for coarse and fine adjustments; Power on and start up; Automatically store data 2: Fine tuning; Turn on the power and briefly press the toggle switch; Automatically store data 3: Fine tuning; Power on and turn off, short press the toggle switch; Automatically store data 4: Fine tuning; Power on and turn on, one click return to minimum value; Automatically store data Multiple Display Modes: Multiple display modes can be adjusted freely, and can be set through the magnification value (F009): 20.0 (mA) actual current display: default multiplier is 1 50.0 (Hz) frequency display: Set the magnification to 2.5 100.0 (%) percentage display: Set the magnification to 5 PackageList: 1 x Signal Generator
