SKU/Artículo: AMZ-B08C6CDN35
Summit Hydraulics
Summit Hydraulics Universal Hydraulic Third Function Valve Kit w/Joystick Handle, 15 GPM, 1/2" Ag Couplers & Fittings
Size:
1/2" Body AG couplers
Detalles del producto
Disponibilidad:
En stock
En stock
Peso con empaque:
4.71 kg
4.71 kg
Devolución:
Sí
Sí
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Viaja desde
USA
USA
Sobre este producto
- This 3rd function valve kit is powered by the power beyond port of your existing loader valve which will allow you to use multiple functions at the same time (i.e. curl bucket and close grapple). Kit includes joystick handle that replaces your existing handle and has 2 integrated momentary push button switches so you can open and close your cylinder with a push of a button. Our joystick handle has a comfortable ergonomic design and is fully weatherproof. The handle will attach onto existing joystick shaft using the removable adapter bushings and adjustment screws.The valve can be installed on any equipment that has a power beyond port on it pending the flow is less than 15 GPM. If no power beyond port is available or can’t be identified, this valve can be connected directly to the hydraulic pump with the loader valve connected downstream.Joystick Handle:Ergonomic design with 2 momentary push button switchesFully weatherproofMounts on existing loader joystick shaftRemovable adapter bushings designed to fit any joystick shaft12v power source10ft Wiring Harness with 2 weatherproof Deutsch connectorsValve Body Features: Solid aluminum housing designed for rugged useMax Operating Pressure: P = 5080 PSI, T = 3050 PSI, A & B = 5080 PSIFlow Rating: 15 GPMAluminum Body3000 PSI Rated#8 SAE O-Ring Work PortsUniversal bracket that can be either bolted (through hole must be drilled) or welded to your current machineSolenoid Specifications:Nominal Voltage Tolerance +/- 10%Power Rating: 37 WattsAmps: 3.08100% Duty CycleHydraulic Hoses are the only thing missing to make this kit complete
AR$2.090.771
49% OFF
AR$1.072.192
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
AR$2.090.771
49% OFF
AR$1.072.192
10% OFF con cupon ANIVERSARIO10
Pagá fácil y rápido con Mercado Pago o MODO
Llega en 12 a 18 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Conoce más detalles

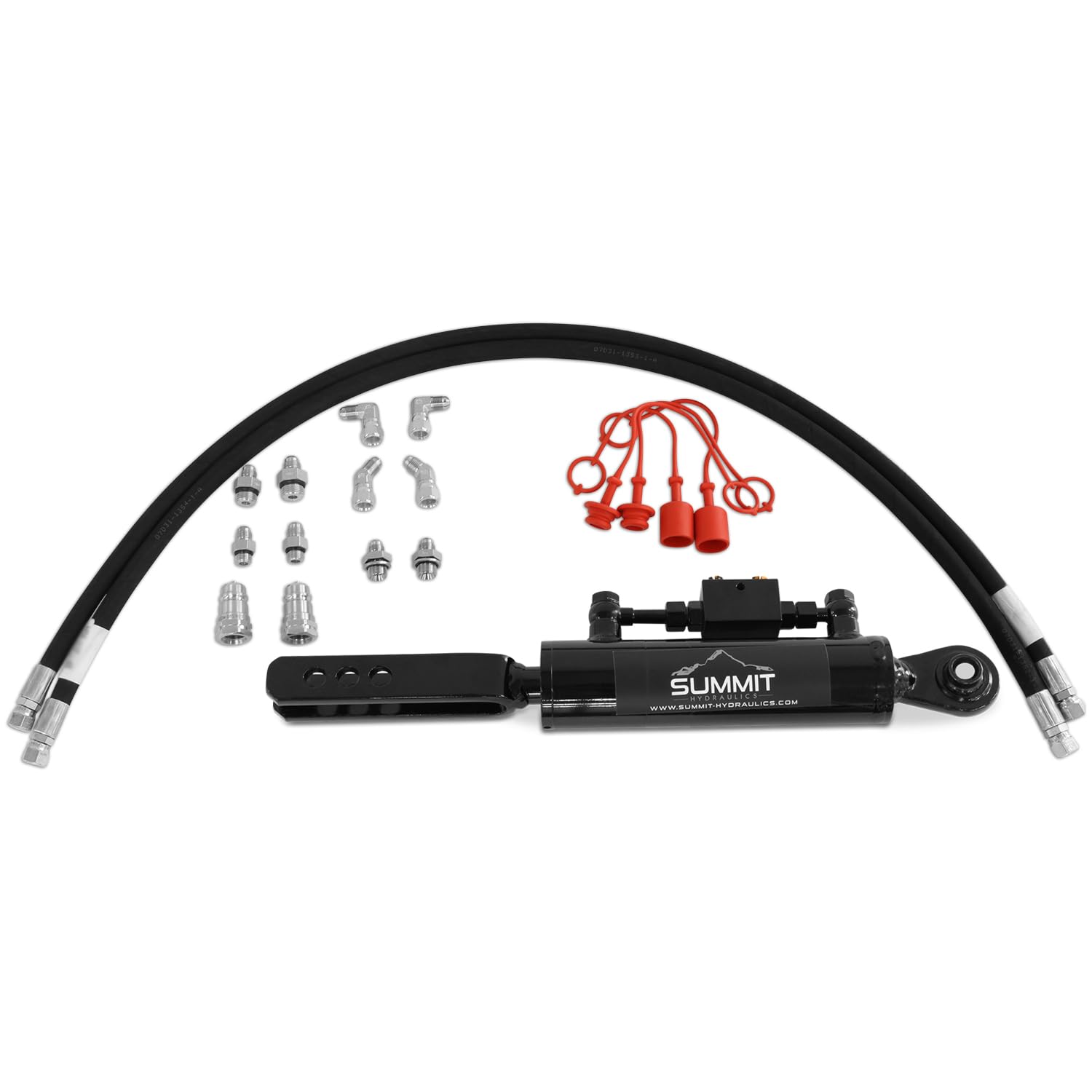

This third function kit allows you to add an electronically controlled hydraulic function to your tractor or skid loader without the need for expensive factory add-ons. Includes: (3) - 1/2" Body Agricultural (Poppet) 1/2" SAE Coupler Set, 1/2" JIC Male Fittings This 3rd function valve kit is powered by the power beyond port of your existing loader valve which will allow you to use multiple functions at the same time (i.e. curl bucket and close grapple). Kit includes joystick handle that replaces your existing handle and has 2 integrated momentary push button switches so you can open and close your cylinder with a push of a button. The valve can be installed on any equipment that has a power beyond port on it pending the flow is less than 15 GPM. Includes a durable mounting bracket that can be mounted to your machine with bolts or welding.
