SKU/Artículo: AMZ-B0FMDYTBKR
Wonrabai

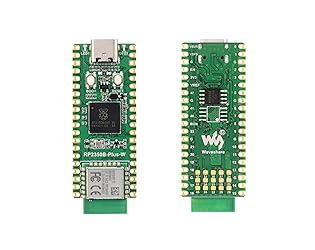

RP2350B-Plus-W Development Board, Use Official RP2350B Dual-Core & Dual-Architecture Microcontroller, Equipped with RPi Radio Module 2, Supports Wi-Fi and Bluetooth, 520KB SRAM and 16MB Flash Memory
Detalles del producto
Disponibilidad:
En stock
En stock
Peso con empaque:
0.15 kg
0.15 kg
Devolución:
No
No
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Viaja desde
USA
USA
Sobre este producto
- Introduction The RP2350B-Plus-W is a low-cost, high-performance microcontroller development board. In a smaller board size, RP2350B is used as the main controller, equipped with Official RPi Radio Module 2 module, integrating 16MB on-chip Flash and reserving PSRAM interface for easy development and integration into the product. Features RP2350B microcontroller chip officially designed by RPi Unique dual-core and dual-architecture design, equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz, supporting flexible switching between the two architectures Equipped with RPi Radio Module 2 module, supporting Wi-Fi 4 wireless network and Bluetooth 5.2 Built-in 520KB SRAM and 16MB on-chip Flash, with a reserved PSRAM interface Type-C connector, easier to use USB1.1 host and slave device support Low-power sleep and dormant modes Drag-and-drop programming using mass storage over USB 41 x multi-functional GPIO pins 1 x HSTX, 2 x SPI, 2 x I2C, 2 x UART, 6 x 12-bit ADC and 22 x controllable PWM channels Accurate clock and timer on-chip Temperature sensor On-chip accelerated floating-point library 12 x Programmable I/O (PIO) state machines for custom peripheral support Package Content RP2350B-Plus-W x1
AR$75.307
60% OFF
AR$30.119
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
AR$75.307
60% OFF
AR$30.119
10% OFF con cupon ANIVERSARIO10
Pagá fácil y rápido con Mercado Pago o MODO
Llega en 18 a 28 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Conoce más detalles

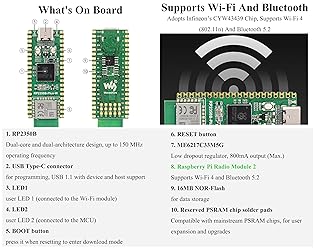

RP2350B-Plus-W Development Board, Based On Official RPi RP2350B Dual-core & Dual-architecture Microcontroller, equipped with the RPi Radio Module 2, integrated with 16MB Flash memory and reserved solder pads for PSRAM chip expansion, which makes it easy for you to develop and integrate into products quickly. Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz. Supports Wi-Fi and Bluetooth: Adopts Infineon’s CYW43439 chip, supports Wi-Fi 4 (802.11n) and Bluetooth 5.2. 520KB of SRAM, and 16MB of onboard Flash memory, with reserved solder pads for PSRAM chip expansion. Type-C connector, keeps it up to date, easier to use. USB 1.1 with device and host support. Low-power sleep and dormant modes. Features accurate clock and timer on-chip, Temperature sensor, Accelerated floating-point libraries on-chip. Drag-and-drop programming using mass storage over USB. 41 x multi-function GPIO pins. 1 x HSTX, 2 x SPI, 2 x I2C, 2 x UART, 6 x 12-bit ADC, 22 x controllable PWM channels. 12 x Programmable I/O (PIO) state machines for custom peripheral support. Comes with Online Tutorial Usage Guide and Online Development Resource, Please check: n9.cl/p50yqt
